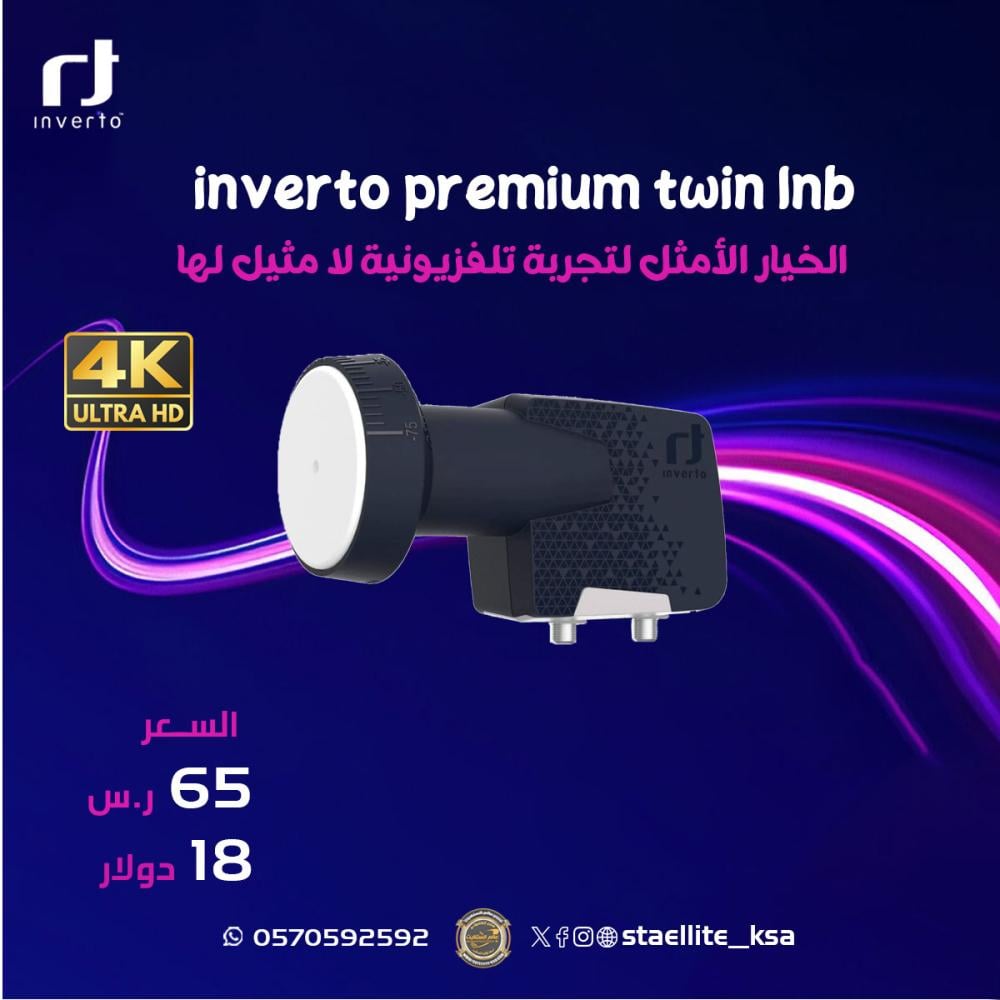

Inverto Premium Pickup Two Outputs
Properties:
Type: satellite installation
Brand: Inverto
Input frequency range: 10.7GHz ~ 12.75GHz
Output frequency range: 950MHz~2150MHz
Low band LO frequency: 9.75GHz
High band LO frequency: 10.6GHz
Noise number: 0.2 dB type. (10.7 dB max)
LO accuracy @ 25°C ± 500kHz max.
LO temperature deviation ±1.0MHz max.
LO phase noise @ 10 kHz -85 dB/Hz max.
Conversion gain 55 dB min.
Gain ripple (over 26MHz bandwidth) ± 0.6 dB
Contrast gain (across the full range) ± 3 dB
Image rejection 40 dB min.
Class III intermodulation - ICP3 type 10 dBm.
1 decibel pressure point (@output) 0 decibels min.
Cross-polarization isolation 22 dBm.
Control signal Ca (V) 10.0 V ~ 14.0 V
Control signal Cb (H) 16.0 V ~ 20.0 V
Control signal Cc (band switching) 22KHz ± 4KHz
VSWR 2.5 output: 1
At the level of the spurious range -60 dB max.
Current consumption 120 mA max. @ 11 VDC ~ 20 VDC
Operating temperature -35°C ~ +60°C
Output impedance 75 ohm
Type F output connector (female)
Plate ratio F/D 0.6
Weight 218 grams
Package Dimensions (W x D x H) 15.5cm x 9.1cm x 7.6cm
Package weight 0.278 kg
—————————————————
Type : Satellite Mounting
Brand : Inverto
Input frequency range: 10.7 GHz ~ 12.75 GHz
Output frequency range: 950 MHz ~ 2150 MHz
Low band LO frequency: 9.75 GHz
High band LO frequency: 10.6 GHz
Noise figure: 0.2 dB typ. (10.7dB max.)
LO accuracy @ 25 °C ±500 kHz max.
LO temperature drift ±1.0 MHz max.
LO phase noise @ 10 kHz -85 dBc/Hz max.
Conversion gain 55 dB min.
Gain ripple (over 26 MHz bandwidth) ±0.6 dB
Gain variation (over full band) ±3 dB
Image rejection 40 dB min.
3th order intermodulation - ICP3 10 dBm typ.
1 dB compression point (@output) 0 dBm min.
Cross polarization isolation 22 dB min.
Control signal Ca (V) 10.0 V ~ 14.0 V
Control signal Cb (H) 16.0 V ~ 20.0 V
Control signal Cc (band switching) 22 kHz ±4 kHz
Output VSWR 2.5 : 1
In band spurious level -60 dBm max.
Current consumption 120 mA max. @ 11 VDC ~ 20 VDC
Operating temperature -35 °C ~ +60 °C
Output impedance 75 Ω
Output connector type F-type (female)
Dish F/D ratio 0.6
Weight 218 g
Packaging dimensions (W x D x H) 15.5 cm x 9.1 cm x 7.6 cm
Packaging weight 0.278 kg
