GTX Combo Receiver Forkey Android 9
1.CI Plus 1.4, SATA-HDD Bracket, PVR, 1000M Ethernet, YUV4:2:2 decoder
2. Android 9.0, Amlogic S905X3, RAM 2GB DDR4 + ROM 32GB
3-DVB-S/S2/S2X,ATSC-T1.0/C,DVB-T/T2/C/C2,ISDBT
4.8K Decoder H265_Main10, 4K Display
5.Wifi 2.4G/5G+BT4.1, 802.1.1b/g/n/ac
6.PowerVu, BISS auto roll
7. Self-developed online media player GTPLAYER
8. Movies online
9.GTSHARE,SAT2I.P
10.M3U, CAM protocol and CA cards
Accessories:
1 * GTMEDIA GTX Combo TV Box / 1 * GTMEDIA GT Combo TV Box
1 * Bluetooth remote control,
1 * Adapter
1 * HDMI cable
1 * User Manual
1 * Gift box
Specifications in detail:
CPU
Amlogic S905X3, 64-bit Quad-Core ARM® Cortex™ A55 CPU up to 2.0GHz(DVFS)
Graphics processing unit
Daul-core Mali-G31 MP2, up to 850m (DVFS)
RAM
2GB DDR4
rum
32GB EMMC
3D graphics
OpenGL ES 1.1/2.0 and Open VG 1.1 support
Video decoding
8KH265_Main10 L6.2, 8KVP9, 4KP75 10B, H.265,VP9 Profile 2, AVS2 4Kp30 H.264, MPEG-4, DIVD/DIVX, Real8/9/10, RM,RMVB, PMP, FLV, MP4, M4V, VOB, WMV, 3GP, MKV
Audio decoding
DAX stereo, 2x I2S in, 8x I2S out, 8x DAIC, MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC, Dolby+, DTS
Display panel
4-digit white LED display, with multi-function indicators
sata hd
2.5 inch SATA HDD bracket
LED indicator
Power on: green; Standby: red; Remote control: green flashing
button
not
Wifi
Built in 2.4G/5.0G WiFiSupport IEEE 802.1.1b/g/n/ac
Ethernet
10m/100m/1000m
Bluetooth
BT4.1
Infrared
Dual-purpose infrared remote control
Backboard
ANT-in (EC-type IEC169-2 female)
LNB In (Frequency Range950MHz to 2150MHz)
HD OUT(HDMI2.1, 8K x 4K @ 24 maximum resolution output)
1 * USB2.0 + 1 * USB3.0 host
1 * AV out
1 * SPDIF
1 * RJ45
1 * California Card
1 * CI slot 1 * CI slot (optional)
Power (DC 12V/3A)

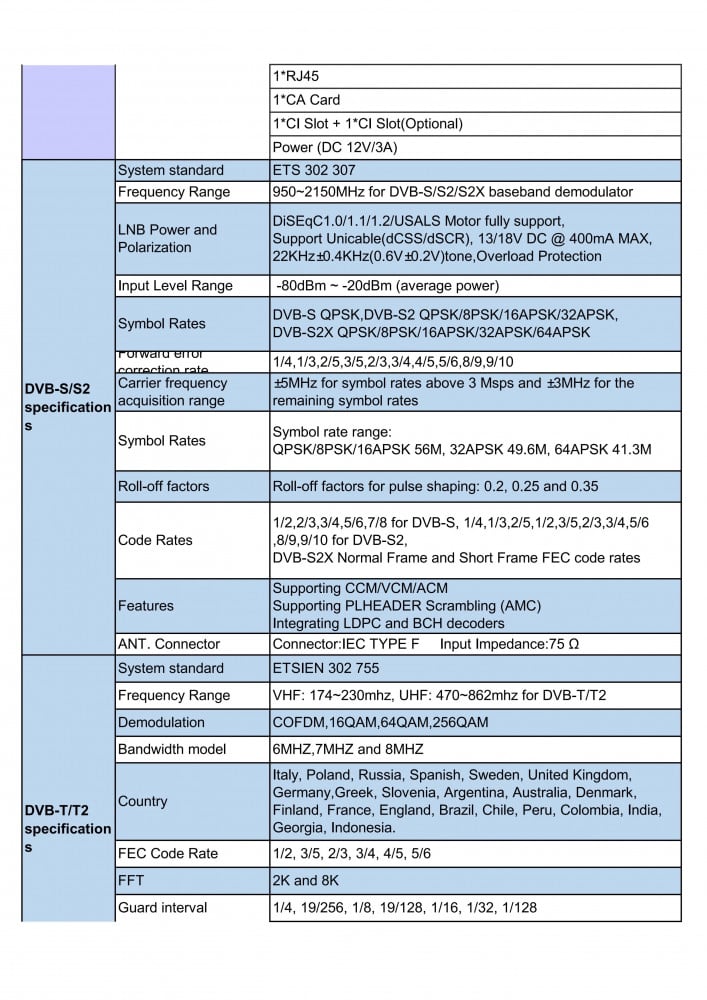

DVB-S/s2 specifications
System standard
ETS 302 307
Frequency range
950~2150MHz for DVB-S/S2/S2X generator
LNB power and polarization
DiSEqC1.0/1.1/1.2/USALS motor full support,
Support unicorn (DCS/DSR), 13/18V DC @ 400mA max, 22kHz±0.4kHz (0.6V±0.2V) tone, overload protection
Input level range
-80dBm ~ -20dBm (average power)
Symbol rates
DVB-S QPSK, DVB-S2 QPSK/8PSK/16APSK/32APSK,
DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK
Forward error correction rate
1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10
Carrier frequency acquisition range
±5 MHz for symbol rates above 3 MHz and ±3 MHz for the remaining symbol rates
Symbol rates
Symbol rate range:
QPSK/8PSK/16APSK 56M, 32APSK 49.6M, 64APSK 41.3M
Factors roll off
Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
Symbol prices
1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/ 4,5/6,,
, 8/9,9/10 for DVB-S2,
DVB-S2X normal frame and short frame FEC code rates
Features
Support CCM/VCM/ACM
Support plhead scramble (AMC)
Integration of LDPC and BCH decoders
Ants. conductor
Connector: IC type FinPot Impedance: 75 Ω
DVB-T/T2 specifications
System standard
ETSIEN 302 755
Frequency range
VHF: 174~230mhz, UHF: 470~862mhz for DVB-T/T2
Extraction
COFDM,16QAM,64QAM,256QAM
Bandwidth model
6MHZ, 7MHZ and 8MHZ
Country
Italy, Poland, Russia, Spanish, Sweden, United Kingdom, Germany, Greek, Slovenia, Argentina, Australia, Denmark, Finland, France, England, Brazil, Chile, Peru, Colombia, India, Georgia, Indonesia.
FEC code rate
1/2, 3/5, 2/3, 3/4, 4/5, 5/6
FFT
2K and 8K
Guard period
, 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128

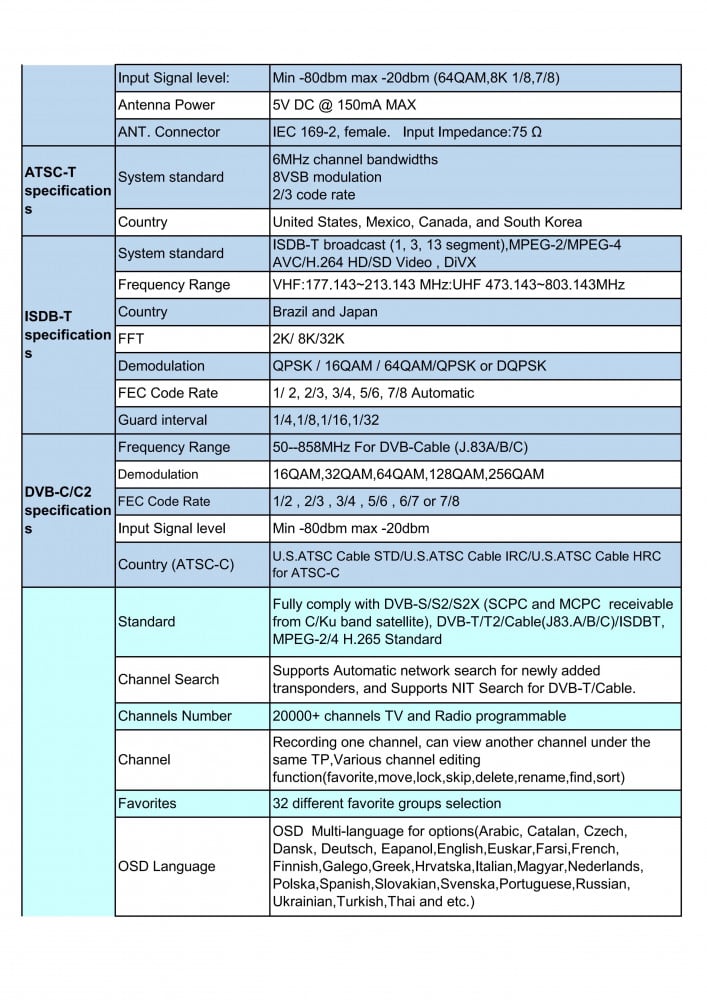

Input signal level:
Min -80dbm max -20dbm (64QAM, 8K 1/8, 7/8)
Antenna power
5V DC @ 150mA Max
Ants. conductor
IEC 169-2, female input impedance: 75 Ω
ATSC-T specifications
System standard
6MHz channel bandwidth
8VSB modification
Code rate 2/3
Country
United States, Mexico, Canada, and South Korea
ISDB-T specification
System standard
Streaming ISDB-T (1, 3, 13 segments),MPEG-2/MPEG-4 AVC/H.264 HD/SD video, DiVX
Frequency range
VHF:177.143 ~ 213.143MHz:UHF 473.143 ~ 803.143MHz
Country
Brazil and Japan
FFT
2K/8K/32K
Extraction
QPSK / 16QAM / 64QAM/QPSK or DQPSK
FEC code rate
1/2, 2/3, 3/4, 5/6, 7/8 automatic
Guard period
1/4,1/8,1/16,1/32
DVB-C/C2 specifications
Frequency range
50--858MHz for DVB-(J.83A/B/C) cable
Extraction
16QAM,32QAM,64QAM,128QAM,256QAM
FEC code rate
1/2, 2/3, 3/4, 5/6, 6/7, or 7/8
Input signal level
Min -80dbm max -20dbm
Country (ATSC-C)
US ATSC cable STD/US ATSC cable IRC/US ATSC cable HRC ATSC-C
Sortware Features
standard
Fully compatible with DVB-S/S2/S2X (SCPC and MCPCrecei of C/Ku band satellite), DVB-T/T2/Cable (J83.A/B/C)/ISDBT, MPEG-2/4 H.265 standard
Channel search
Supports automatic network search for newly added transponder, supports NIT search for dvb-t/cable.
Channel number
20,000+ programmable TV and radio channels
channel
One channel recording, other channel can be displayed under the same TP, various channel editing function (favorite, move, lock, skip, delete, rename, search, sort)
Favorite
32 Choose different favorite groups
OSD language
OSDMulti-language options (Arabic, Catalan, Czech,
Dansk, German, Epanol, English, Euskar, Persian, French,
Finnish, Galego, Greek, Hrvatska, Italian, Magyar,Nederlands,
Polska, Spanish, Slovak, Svenska, Portuguese, Russian,
Ukrainian, Turkish, Thai, etc.)

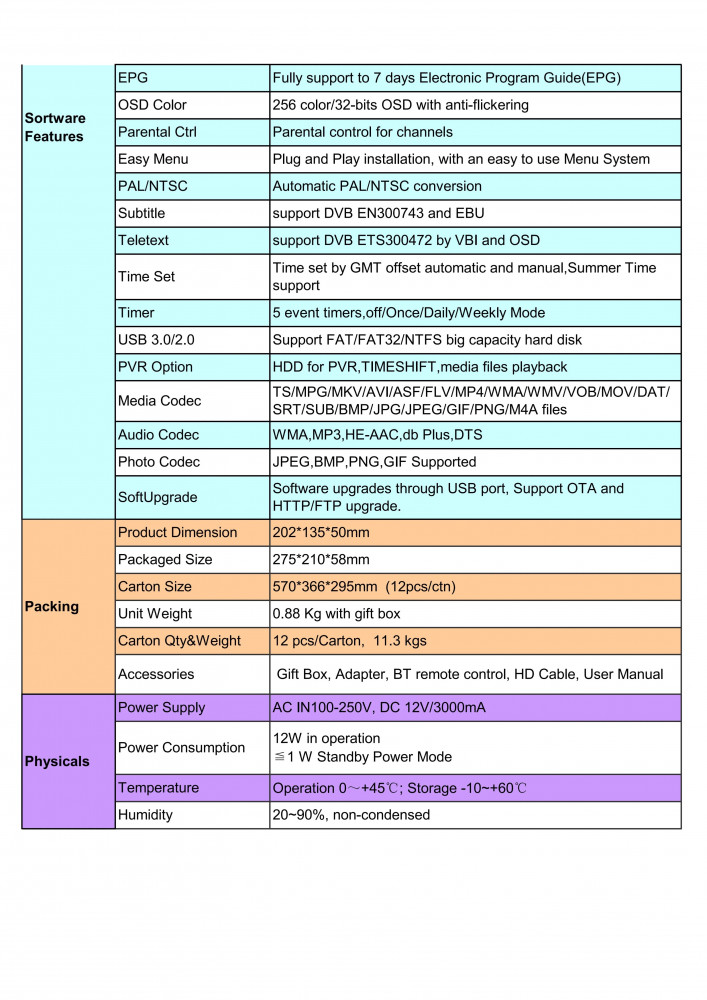

EPG
Full 7-day Electronic Program Guide (EPG) support
OSD color
256 colors/32-bit OSD with anti-flicker
Parental Ctrl
Parental control on channels
Easy list
Plug and play installation, with easy to use menu system
PAL/NTSC
Automatic PAL/NTSC conversion
Subtitle
Support DVB EN300743 and EBU
teletext
Support DVB ETS300472 by VBI and OSD
Set time
Time set by GMT offset automatic and manual, support summer time
Timing device
5 event timing, off/once/daily/weekly mode
USB 3.0/2.0
Support FAT/FAT32/NTFS large capacity hard disk
cucumber pvr
HDD for PVR, timer timing, media files playback
Media encoding
TS/MPG/MKV/AVI/ASF/FLV/MP4/WMA/WMV/VOB/MOV/DAT/SRT/SUB/BMP/JPG/JPEG/GIF/PNG/M4A files
Audio encoding
WMA, MP3, HE-AAC, Dolby Plus, DTS
Image encoding
Support JPEG, BMP, PNG, GIF
softweavers
Software upgrades through USB port, support OTA and HTTP/FTP upgrade.
Packing
Product dimensions
202*135*50mm
Packaged size
275*210*58mm
Carton size
570*366*295mm (12pcs/ctn)
Unit weight
0.88kg with gift box
Carton quantity and weight
12pcs/carton, 11.3kg
accessories
Gift box, adapter, Bluetooth remote control, HDMI cable, user manual
physical
Power supply
AC IN100-250V, DC 12V/3000mA
Energy consumption
12 watts in operation
≦1W standby power mode
temperature
Operation 0~+45℃; Storage -10~+60℃
Humidity
20~90%, non-condensed
