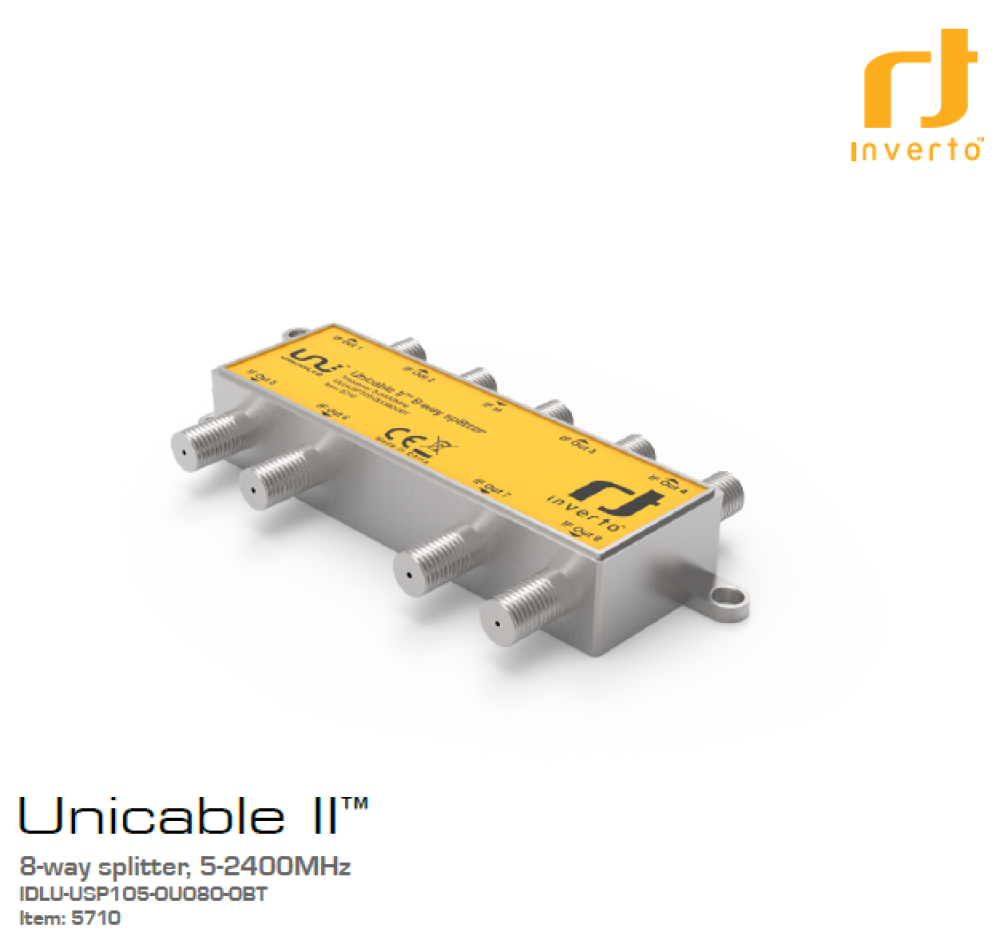

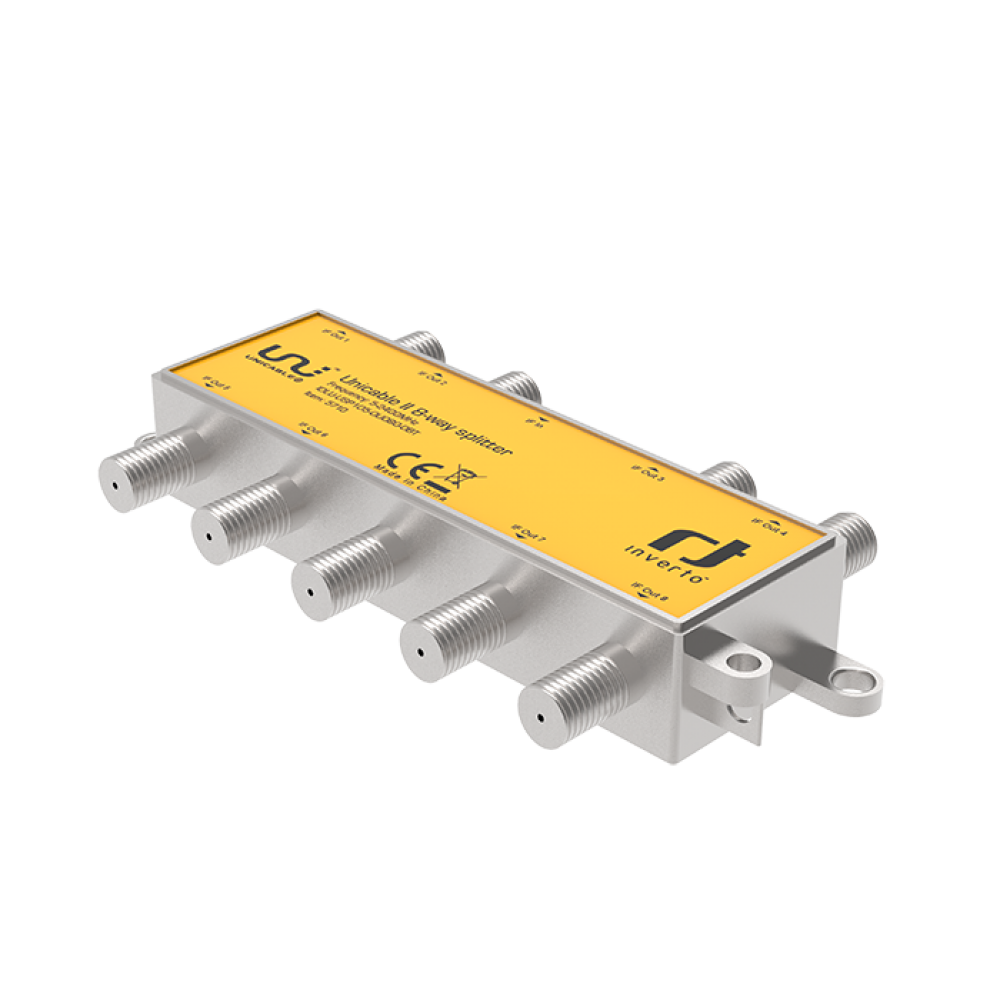

Uni-Cable Inverto 8-Port Splitter
Model number 5710
Unicable II 8-way splitter, 5-2400MHz
Note: This is a splitter for the Uni-Cable Satcr receiver, not a splitter, meaning you cannot install multiple satellites on it. Only one satellite.
8 outputs are distributed to receivers that support this feature only. Unicable Satcr. If it does not support it, it will not work and no signal will reach it.
Technical specifications
Frequency range
5 MHz - 2400 MHz, inputs
One F-type outlet, female
8 Type F Female Outputs Insertion Loss
<12.5 dB (5 MHz - 40 MHz)
<12.5 dB (40 MHz - 860 MHz)
<16 dB (860 MHz - 1750 MHz)
<16 dB (1750 MHz - 2400 MHz) isolation between ports
Minimum 20 dB: Return signal loss to input
Minimum 10 dB: Return signal loss to the output
Minimum 10 dB: DC and 22 kHz output to input
Max. 35V, up to 1A throughput to LNB
Bidirectional DiSEqC commands, directive binaries
Yes, impedance
75 ΩCE, RF Test Class A, Operating Temperature
-30°C ~ +60°C, Weight
105g, Dimensions (W x D x H)
118 mm x 59 mm x 18.8 mm
Main Features:
Low insertion loss, high return loss, and port isolation for satellite and cable television (CATV) applications.
Compatible with Unicable.
RF shielded zinc die-cast housing (Class A).
Ground terminal.
Equipped with two screws for fixing.
Light weight and small size.
———————————-
Technical specifications Frequency range
5 MHz - 2400 MHz Inputs
1x F-type, femaleOutput
8x F-type, female insertion loss
<12.5 dB (5 MHz ~ 40 MHz)
<12.5 dB (40 MHz ~ 860 MHz)
<16 dB (860 MHz ~ 1750 MHz)
<16 dB (1750 MHz ~ 2400 MHz)Isolation between ports
20 dB min.Input return loss
10 dB min.Output return loss
10 dB min.DC & 22kHz pass from Output to Input
35 V max., up to 1 A pass through current towards LNB
bi-directional for DiSEqC commandsSteering diodes
YesImpedance
75 ΩCE, RF screening ClassClass AOperating temperature
-30°C ~ +60°CWeight
105 gDimensions (W x D x H)
118 mm x 59 mm x18.8 mm
Main Features:
Low insertion loss, high return loss and port isolation for satellite and CATV applications
Unicable compatible
RF shielded Zinc die cast housing (Class A)
Grounding terminal
Supplied with two mounting screws
Light weight and compact size
